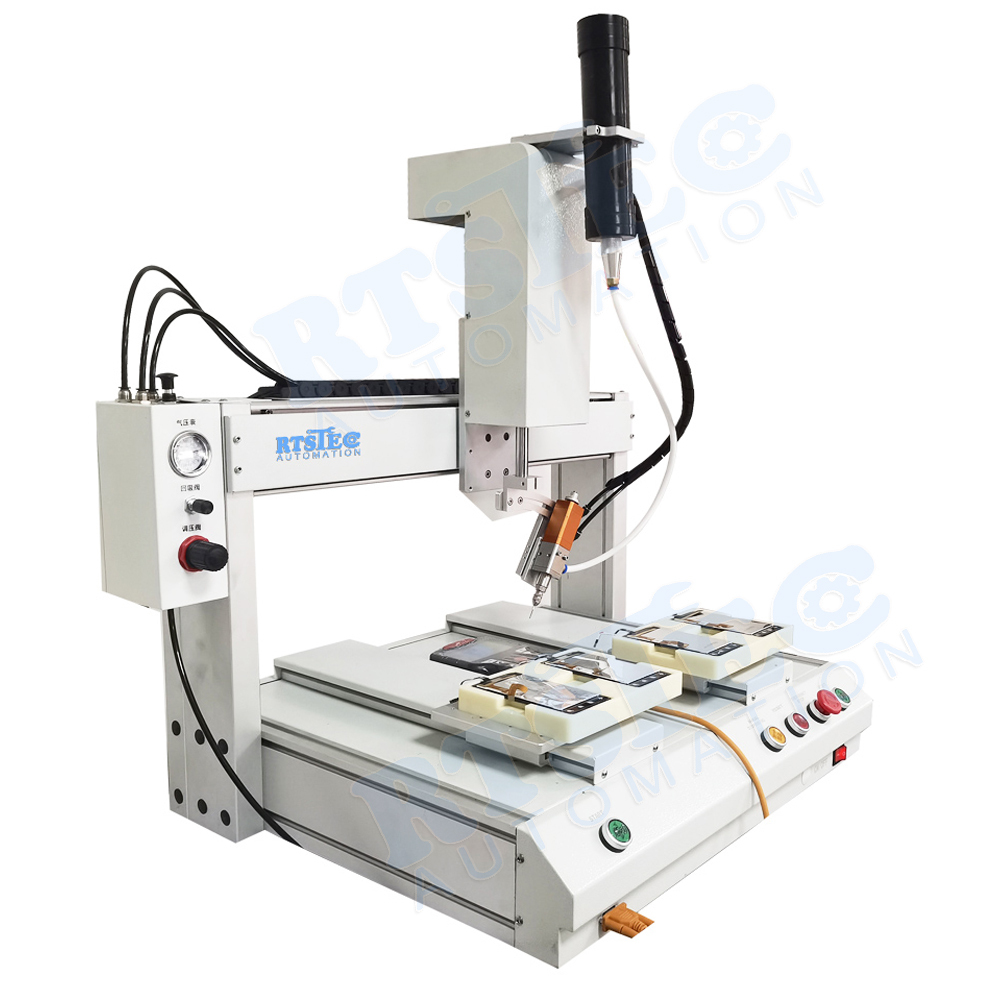

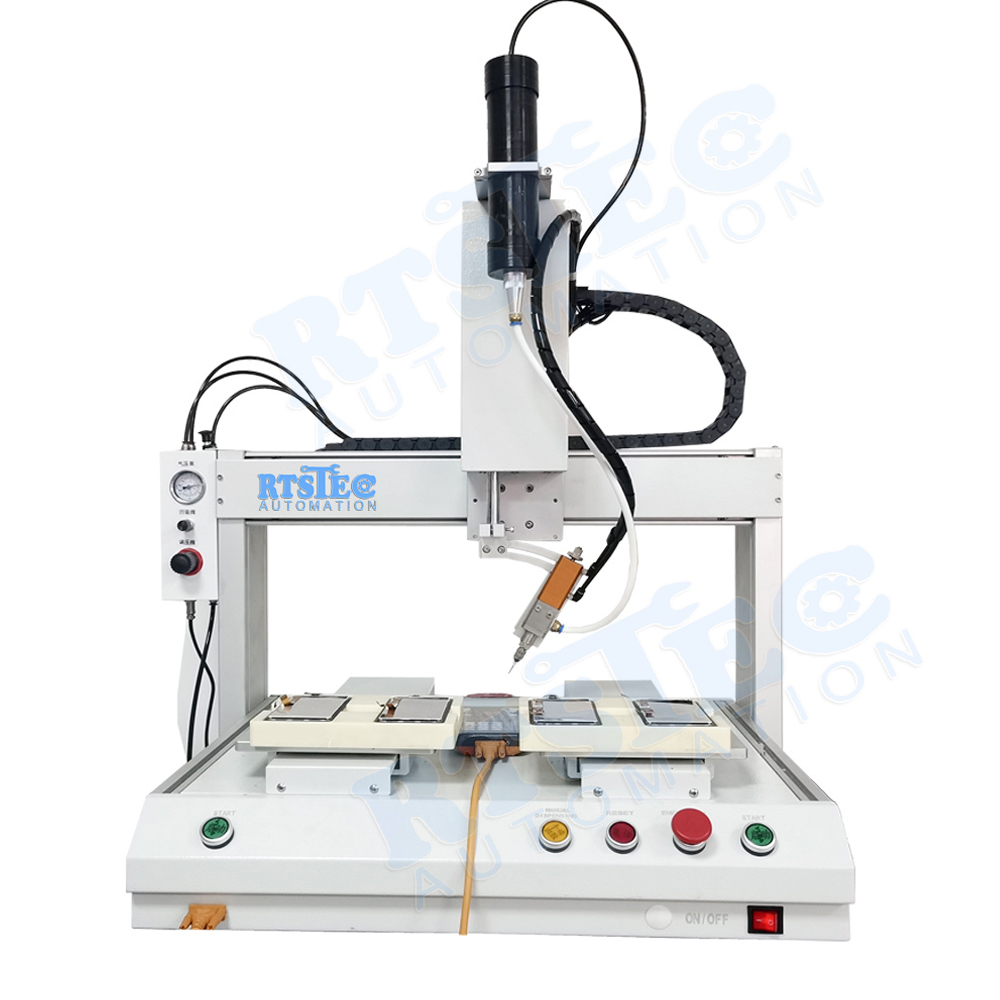

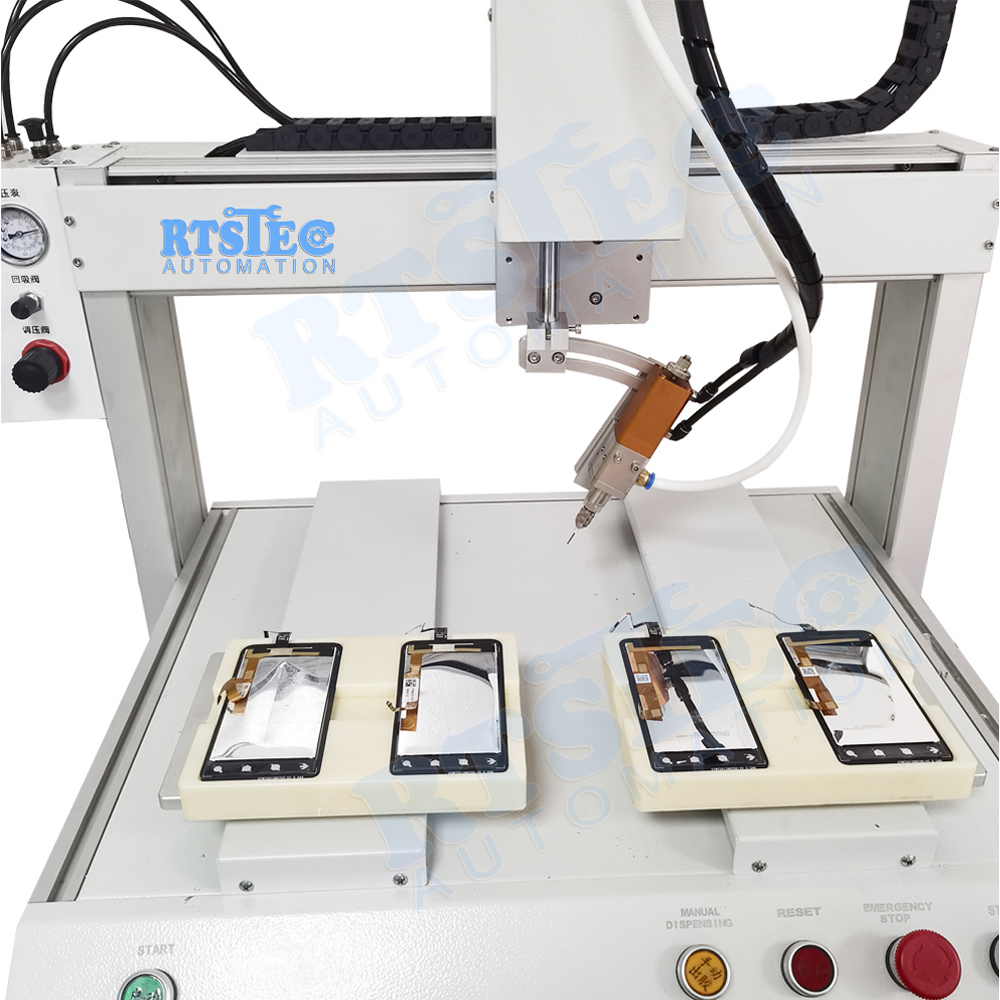

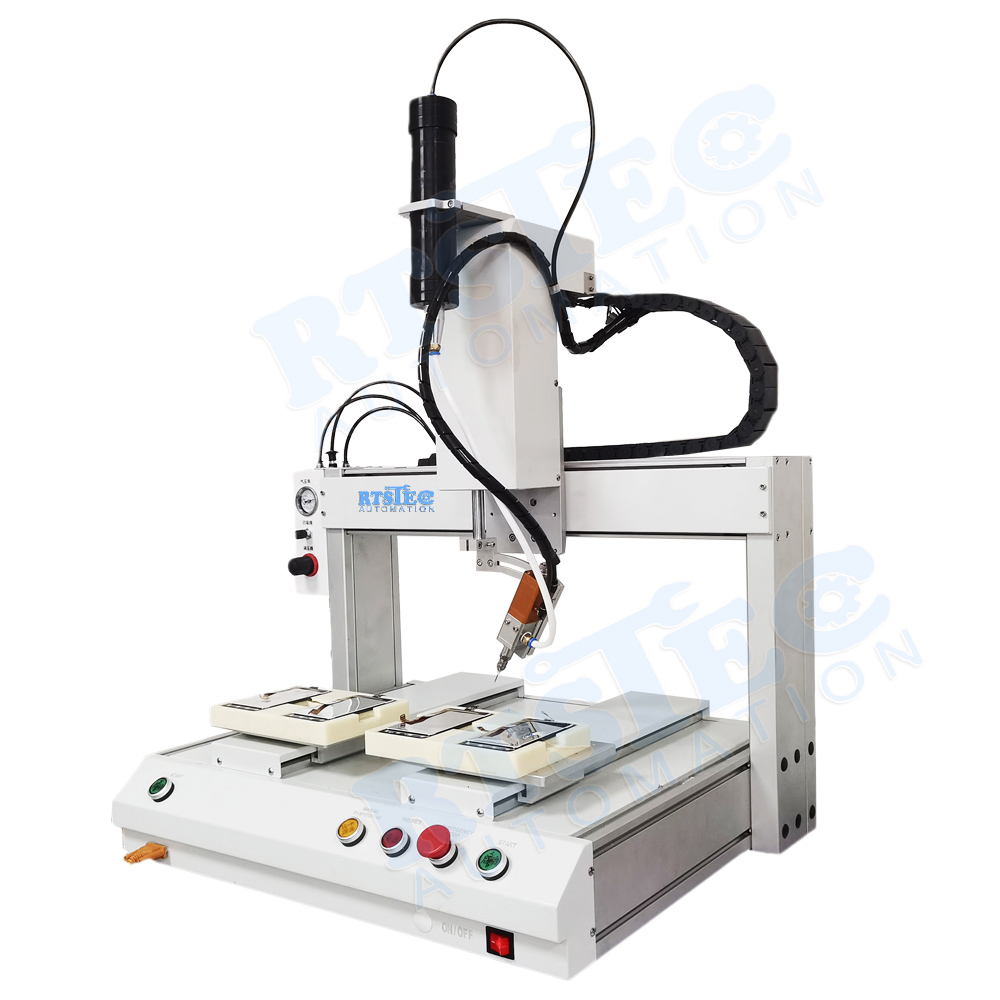

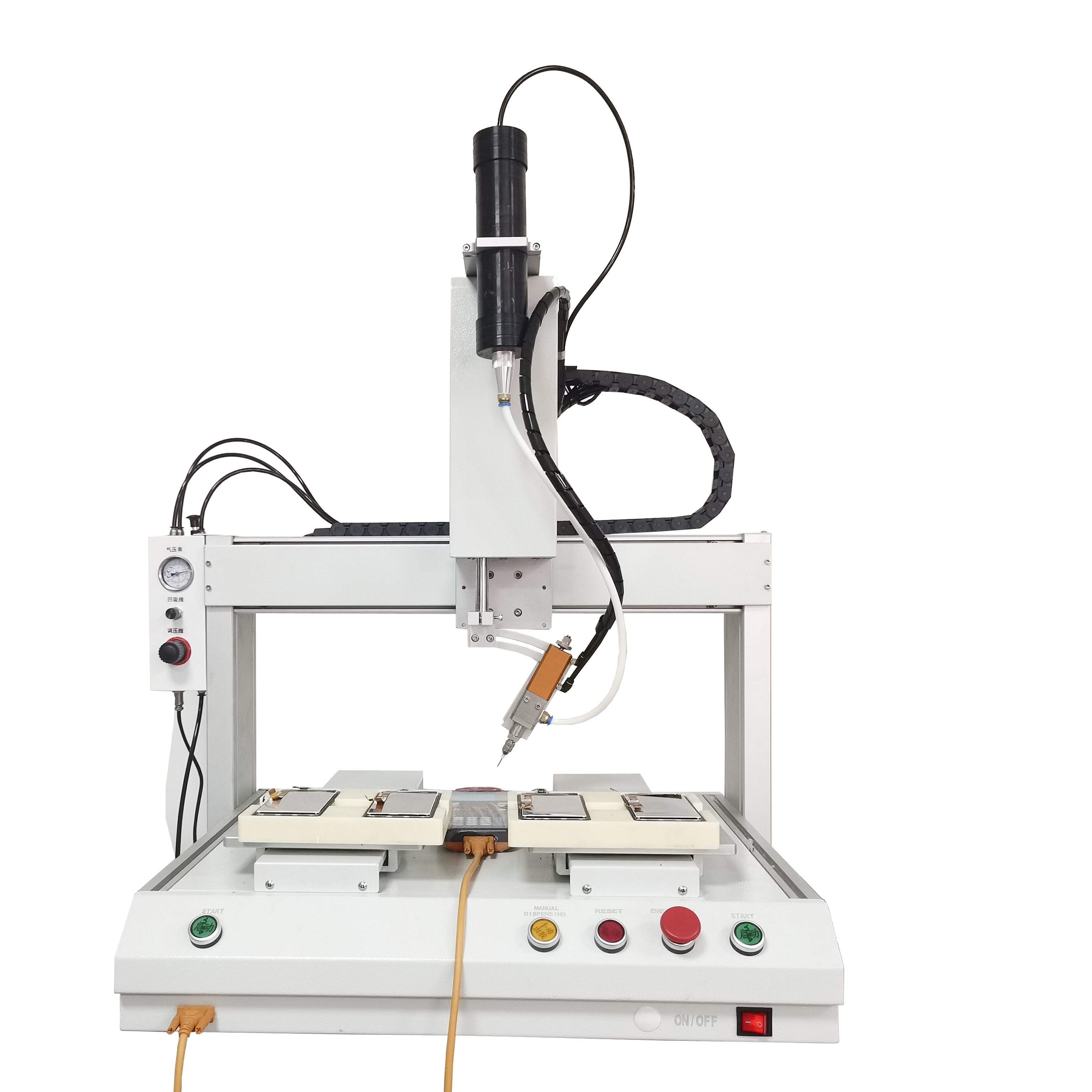

Revolutionize Your Glue Dispensing with RTSTEC's 5-Axis Robotic Machine
Experience unmatched precision and efficiency with our state-of-the-art silicone glue dispensing machine. Designed for LCD phone screen applications, this machine features a 5-axis system with a rotating dispensing head, ensuring every drop of glue is applied accurately.
High-Precision Dispensing for Superior Results
Our advanced 5-axis robotic dispenser offers unparalleled control and accuracy, making it the perfect choice for high-volume production lines. The rotating dispensing head allows for seamless application on complex surfaces, reducing waste and improving product quality.
Key Features and Benefits
Featuring a user-friendly interface and robust construction, this machine is built to handle the demands of industrial environments. Key features include a high-precision 5-axis control system, a rotating dispensing head for complex applications, a user-friendly interface for easy operation, and durable construction for long-term reliability.


What is an adhesive dispensing robotAutomated Robotic Dispensing Systems are cost-effective solutions designed to simplify the dispensing of adhesives and sealants onto various surface configurations, ranging from simple to complex. Dispensing robots allow manufacturers to repeatedly and reliably dispense patterns of liquid materialson a programmed basis, resulting in improved process efficiencies, minimal material waste, and reduced manufacturing costs. Automated robotic dispensing systems areoffered in multiple configurations to meet all your process needs.Features
- This Glue Dispensing Robot is a Simple and convenient operation, with high speed and precise control. Replace human labor and save labor costs.
- The automatic glue dispenser machine sprays or dispenses the glue automatically for bonding, filling, coating, sealing, filling, dripping, linear/arc/round coating, etc.
- Replace human labor and save labor costs. Realize the precise dispensing by the high-precision motor.
- Applied on Fluid sealant, Grease, Silver glue, Instant Adhesive, Thermal paste, Silicone glue, UV glue, Epoxy glue, Conformal Coating, SMT Adhesive, Solder paste, Threadlocker, Syringe glue, Paint, etc.
- Contact us for further inquiries.
Product Advantages
- High Precision and Accuracy: The 5-axis control system ensures the precise application of silicone glue, enhancing the quality and consistency of the finished product.
- Rotating Dispensing Head: Designed for complex applications, the rotating head allows for efficient glue application on various surfaces, particularly useful for LCD phone screens.
- User-Friendly Interface: The machine features an intuitive interface, making it easy to operate and adjust settings according to specific needs.
- Durability and Reliability: Built with high-quality materials, the RTSTEC dispensing machine is designed for long-term use, ensuring reliable performance in demanding industrial environments.
- Increased Productivity: The advanced automation technology reduces manual intervention, increasing production speed and efficiency while minimizing waste.
- Versatile Applications: While ideal for LCD phone screen dispensing, this machine can be adapted for various other precision glue dispensing tasks in different industries.
- Comprehensive Support: RTSTEC offers excellent customer service, from initial consultation to after-sales support, ensuring that customers get the most out of their investment.


Parameters
Model
|
RTS-5531D
|
Dispensing Control
|
Dispensing Control System
|
Dispensing Speed
|
According to customer's product requirements and glue types
|
Maximum Load Weight
|
8kgs (for work platform)
|
Operation Range (X*Y*Z) (mm)
|
500*500*100mm
|
Axis
|
3 Axis (X,Y,Z)
|
Maximum Speed
|
X,Y 500mm/S, Z 300mm/S
|
Repeated precision
|
X,Y,Z ±0.02mm
|
Teaching Method
|
Remote Teaching/Manual Data Input/Optional: LCD Touch Screen
|
Motor system
|
precision stepper motor
|
Transmission mode
|
Precision Stepping Motor+Timing belt
|
Control Panel
|
Teach pendant (optional:PC or Touch Screen)
|
Voltage
|
AC 110V/220V,50Hz/60Hz
|
External Interface
|
USB + RS232
|
Power Source
|
Electricity + Pneumatic
|
Air pressure requirement
|
0.4 to 0.6MPa (4 to 6kg/cm2) as dry air
|
Dimension (L*W*H) (mm)
|
650*630*680mm
|
Weight(kg)
|
50 KG
|
Working Temperature
|
10-40C°
|
Working Humidity
|
20-90% RH
|
Dispensing Different type of Glue/Fluid
Dispensing Rounting Could be Edited . Operated by Teach Pandant

Applied On Many industrial Products

Why Choose Us

Choosing RTSTEC Automation means partnering with a company that's dedicated to providing not just products but complete solutions tailored to your operational needs.We support our clients from implementation to ongoing maintenance, ensuring optimal performance and satisfaction. We are continuously pushing the boundaries of what's possible in automation technology. Our commitment to innovation drives us to explore new solutions that will define the future of industry automation.Since being established in 2017. we have produced more than 1000 set machines to help factories improve productivity and save much cost.
Trusted by Industrial leaders
About RTSTEC Automation
RTSTEC Automation began with a vision to revolutionize the manufacturing industry through advanced automation solutions. Our journey started in a small workshop in Guangdong, China, where a team of passionate engineers and innovators came together with a shared goal: to create precision-engineered glue dispensing machines that set new standards in the industry.Our mission is to empower manufacturers with cutting-edge automation technology that enhances productivity, reduces waste, and improves product quality. We are dedicated to providing high-quality, reliable machines that meet the evolving needs of our customers worldwide.At RTSTEC, innovation is at the heart of everything we do. Our research and development team constantly explores new technologies and techniques to ensure our products remain at the forefront of the industry. We pride ourselves on our rigorous quality control processes, ensuring every machine we produce meets the highest standards of performance and durability.We believe that our success is built on the success of our customers. That's why we are committed to providing exceptional customer service and support. From initial consultation to after-sales service, our team is here to help you achieve your manufacturing goals.As we continue to grow and innovate, we invite you to join us on our journey. Whether you're looking to improve your production processes or seeking a reliable partner for your automation needs, RTSTEC Automation is here to help. Together, we can build a future where technology and manufacturing work hand in hand to create better products and a better world.Contact UsRoom 1716, Building 5, Linshangwan Plaza, No. 1, Muhua Road, Junlan Community, Beijiao Town, Shunde District, Foshan, Guangdong, ChinaPhone: 86 13590396849
