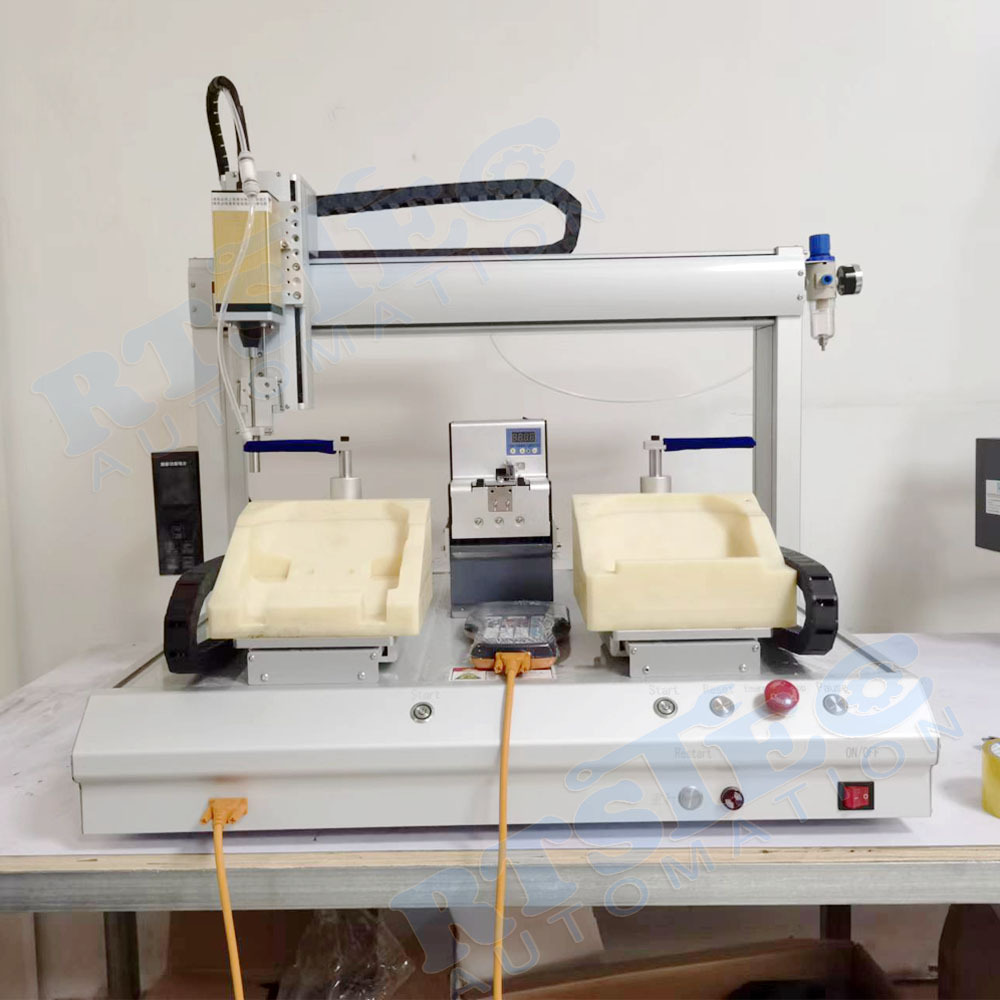

Enhance Efficiency with RTSTEC's Double Workstation Screwdriver Machine
RTSTEC Automation Robotic Screwdriver Machine is engineered to streamline your assembly processes. With a double workstation design, it allows for continuous operation by alternating between two workbenches, significantly reducing downtime and boosting productivity.
Automated Precision for Superior Assembly

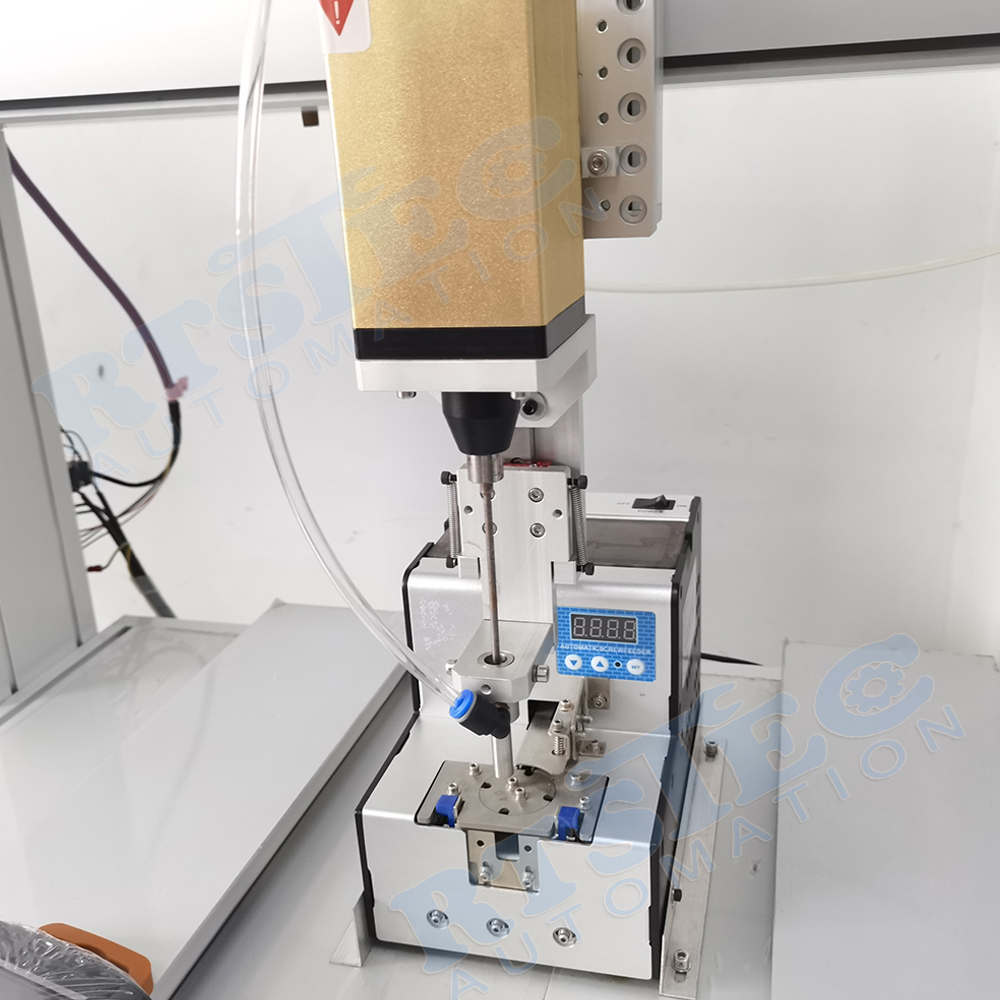

Equipped with an automatic feeder and advanced screw detection capabilities, our machine ensures accurate and consistent screw fastening. This not only improves product quality but also reduces labor intensity by automating the screw driving process.

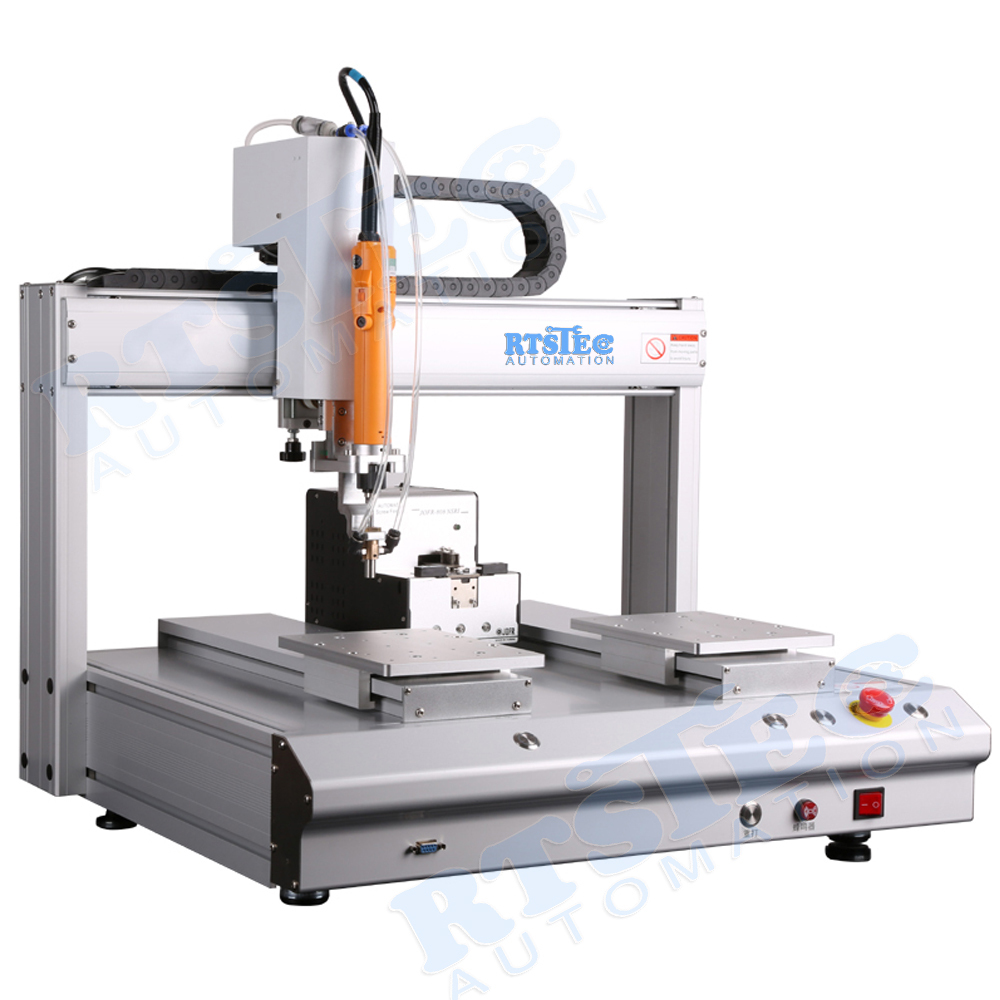

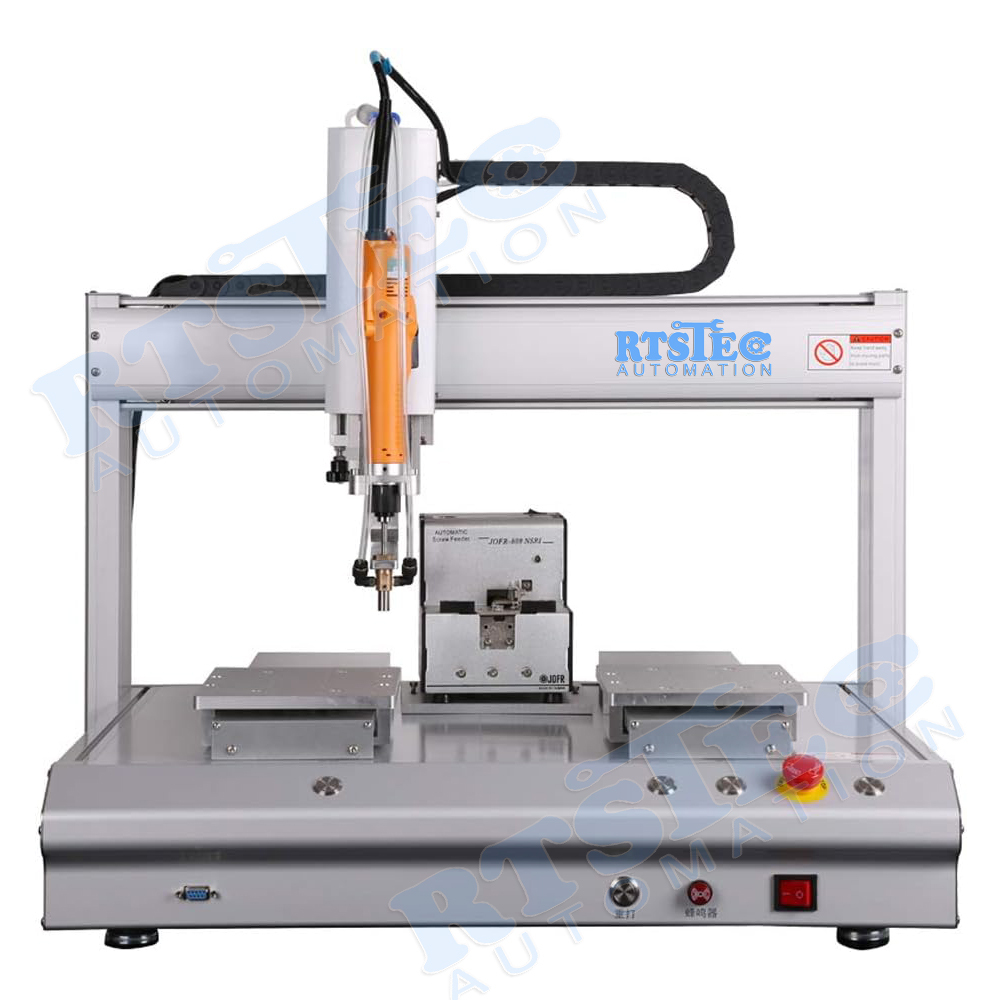

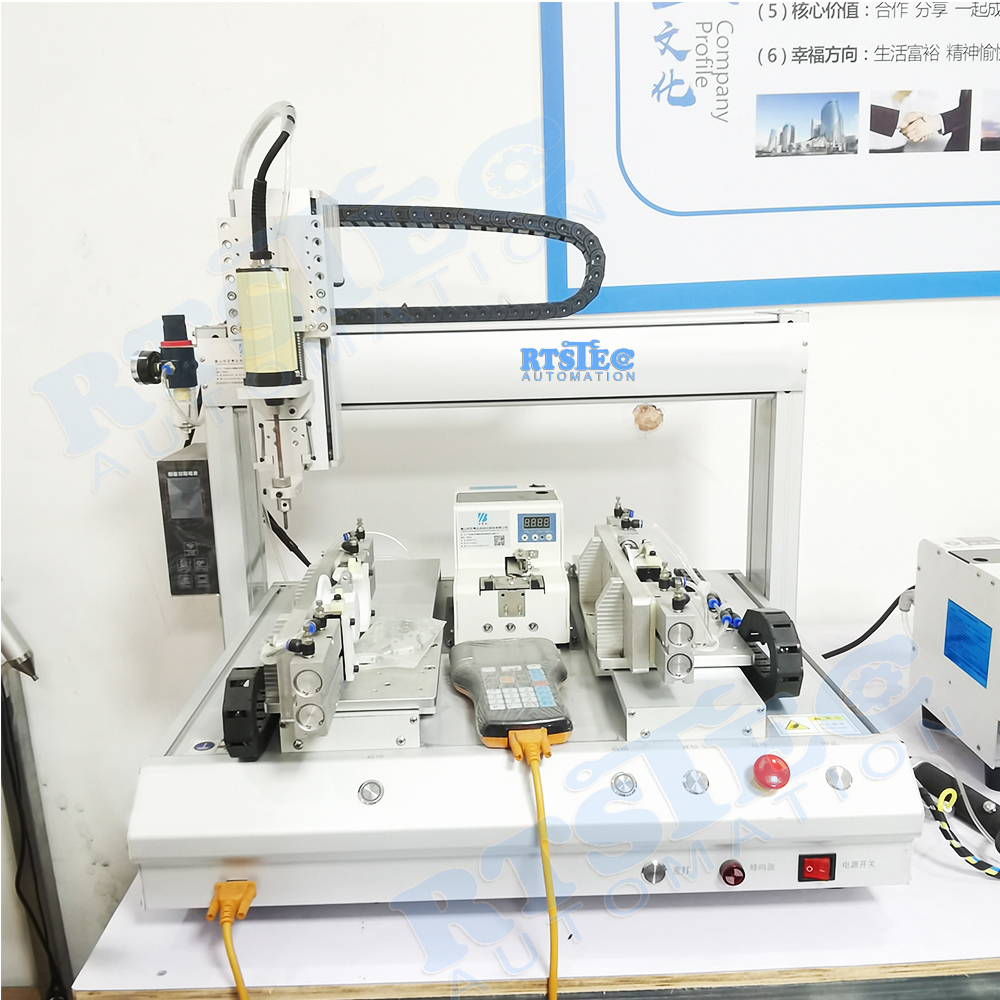

The automatic screwdriver assembly machine is composed of an automatic screw-feeding system and a five-dimensional automatic manipulator. It has the detection of screw slip, no screw, floating lock, etc. The screw fastening robot can complete the workload of 3-6 people at the same time with fully automatic cooperation and only needs one person to operate, which greatly improves production efficiency, screw driving robot is high universal, and only needs to change the fixture to adjust the program.
| Model |
RTS-SZDY5331 |
| Feeder mode |
Air Suction Type |
| Operation Range (X*Y*Z) (mm) |
X: 500mm Y: 300mm Z: 100mm |
| Axis |
3 Axis (X,Y,Z) |
| Driving mode |
Precision Stepping Motor + Timing belt |
| Maximum Speed |
X,Y 600-800mm/S, Z 600mm/S |
| Repeated precision |
X,Y,Z ±0.02mm |
| Teaching Method |
Remote Teaching / Manual Data Input / Optional: LCD Touch |
| Motor system |
Precision stepper motor |
| Transmission mode |
Timing belt + screw rod + guide rail |
| Control Panel |
Teach pendant (optional: PC or Touch Screen) |
| Screwdriver brand |
Taiwan KILEWS / Japan HIOS |
| Torque Range |
0.5~15kgf.cm (can be adjusted) |
| Tighten efficiency |
About 60pcs/min (according to the screw type) |
| Voltage |
AC 110V/220V, 50Hz/60Hz |
| External Interface |
USB + RS232 |
| Power Source |
Electricity + Pneumatic |
| Air pressure requirement |
0.4 to 0.6MPa (4 to 6kg/cm2) as dry air |
| Working Temperature |
5-40°C |
| Working Humidity |
20-90% RH |
| Dimension (L*W*H) (mm) |
620*590*660mm |
| Weight (kg) |
70 KG |
