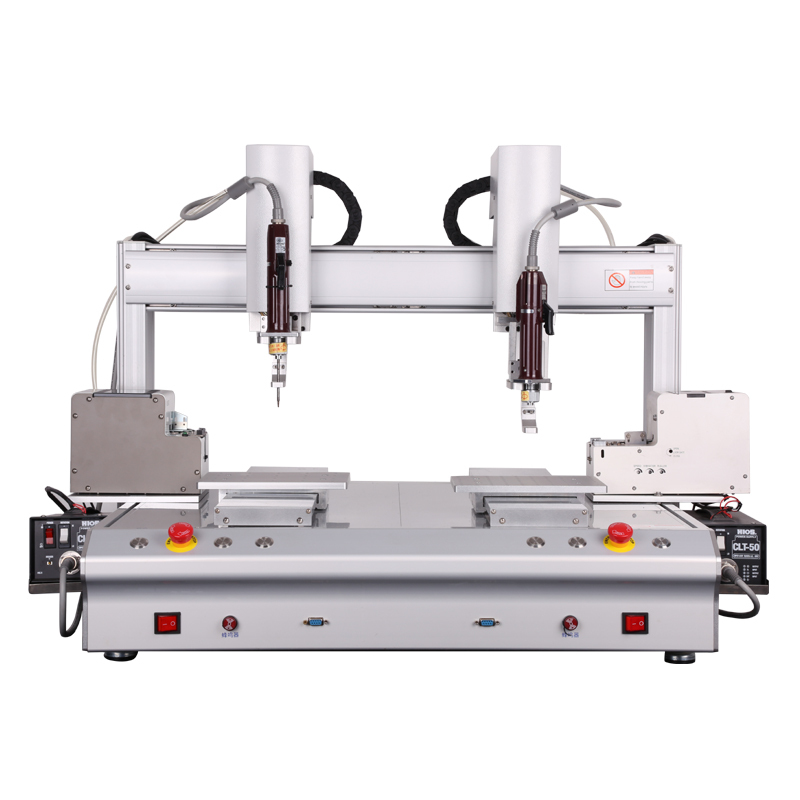

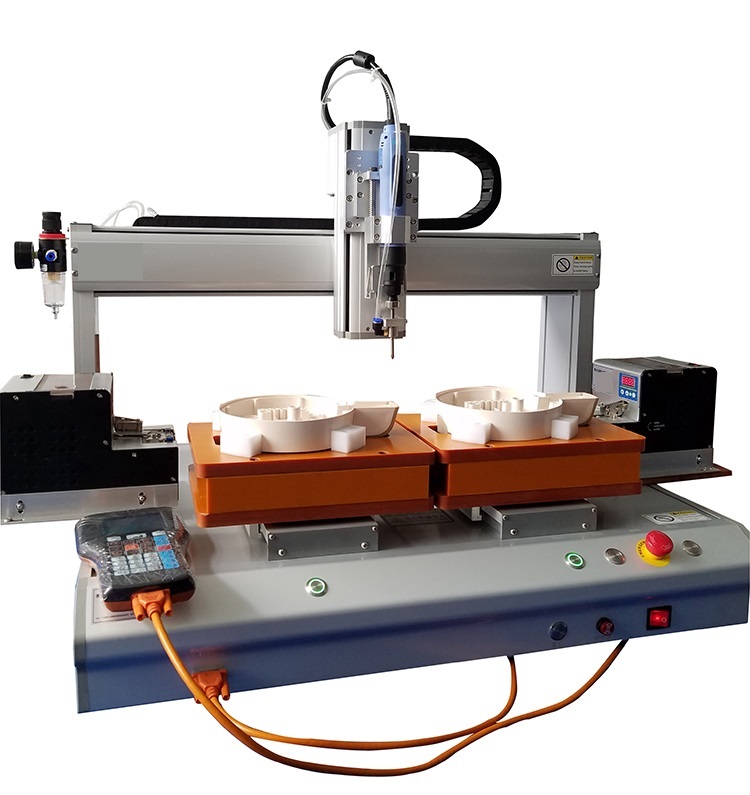

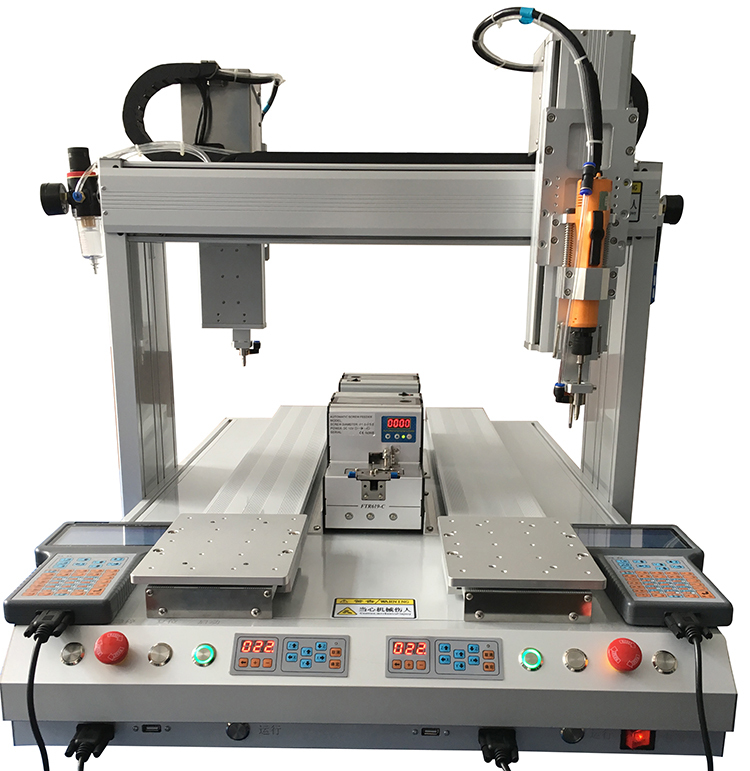

Enhance Your Production Line with RTSTEC Screw Assembly Machine
RTSTEC's Automated Screwdriver Machine revolutionizes factory assembly lines by offering precision, speed, and reliability. This machine is ideal for industries requiring high-efficiency assembly processes.
Key Features and Benefits
Equipped with dual workstations for continuous operation, our machine reduces labor intensity and ensures consistent quality in screw locking. Perfect for applications in electronics, automotive, and aerospace industries.

The automatic screwdriver assembly machine is composed of an automatic screw-feeding system and a five-dimensional automatic manipulator. It has the detection of screw slip, no screw, floating lock, etc. The screw fastening robot can complete the workload of 3-6 people at the same time with fully automatic cooperation and only needs one person to operate, which greatly improves production efficiency, screw driving robot is high universal, and only needs to change the fixture to adjust the program.
Attribute |
Value |
Model |
RTS-T-DZDYS331 |
Feeder mode |
Air Suction Type |
Operation Range (X*Y*Z) (mm) |
X: 500mm Y: 300mm Z: 100mm |
Axis |
3 Axis (X, Y, Z) |
Driving mode |
Precision Stepping Motor+Timing belt |
Maximum Speed |
X, Y 600-800mm/s, Z 600mm/S |
Repeated precision |
X, Y, Z ±0.02mm |
Teaching Method |
Remote Teaching / Manual Data Input / Optional: LCD Touch Screen |
Motor system |
Precision stepper motor |
Transmission mode |
Timing belt + screw rod + guide rail |
Control Panel |
Teach pendant (optional: PC or Touch Screen) |
Screwdriver brand |
Taiwan KILEWS / Japan HIOS |
Torque Range |
0.5-15kgf.cm (can be adjusted) |
Tighten efficiency |
About 60pcs/min (according to the screw type) |
Voltage |
AC 110V/220V, 50Hz/60Hz |
External Interface |
USB + RS232 |
Power Source |
Electricity + Pneumatic |
Air pressure requirement |
0.4 to 0.6MPa (4 to 6kg/cm2) as dry air |
Working Temperature |
5-40°C |
Working Humidity |
20-90% RH |
Dimension (L*W*H) (mm) |
620*590*660mm |
Weight(kg) |
70 KG |

Based on the typical features and capabilities generally associated with automated screwdriver machines, here are some potential advantages of such a machine from RTSTEC Automation, which might apply given the general context:
Increased Productivity: Automated screwdriver machines significantly speed up the assembly process compared to manual operations. The use of precise mechanical movements ensures that screws are tightened at optimal speeds, leading to faster production cycles.
Enhanced Precision and Consistency: With advanced control systems, these machines deliver high precision in screw placement and torque control, ensuring each screw is tightened to the exact specifications without risking over-tightening or cross-threading. This consistency is crucial for maintaining product quality, especially in high-volume manufacturing settings.
Reduced Labor Costs: By automating the screwdriving process, companies can reduce the number of operators needed on the production line. This not only cuts down labor costs but also minimizes human errors.
Improved Workplace Safety: Automation helps in reducing the chances of injuries that can occur with manual screwdriving, such as repetitive strain injuries. The machine handles the physically strenuous tasks, allowing employees to focus on less hazardous duties.
Flexible Integration: Typically, these machines are designed to be integrated into existing production lines with minimal disruption. This flexibility allows for easy setup and the ability to adapt to different product designs or assembly needs.
Scalability for High Volume Production: Automated screwdriver machines are ideal for scaling production up or down without significant additional costs. They can continuously operate at a constant rate, providing reliable output irrespective of demand fluctuations.
